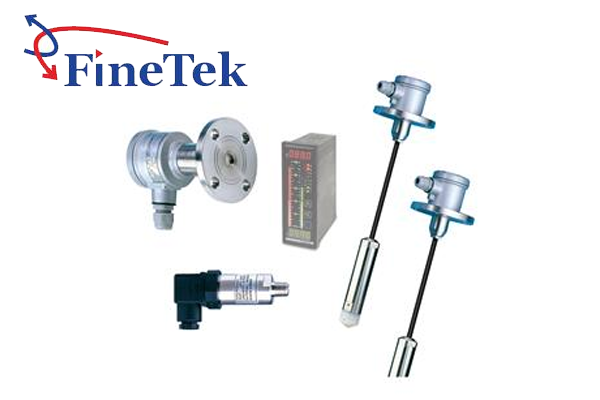

The EC series is a hydrostatic pressure level transmitter for measuring the level of liquids in various tanks and other types of vessels. The EC hydrostatic pressure level transmitter consists of a piezoresistive sensor and Wheatstone bridge to directly measure head pressure exerted on the diaphragm of the EC level transmitter. When the pressure is exerted on the diaphragm, as a result of the liquid level, the pressure is transferred to the Wheatstone bridge electrical circuit through silicon oil contained in the EC sensing unit. This creates a differential voltage, which is then amplified to create a variable 4-20mA output that varies as a result of the changing liquid level. In addition, a pressure transducer is available for measuring pressure in tanks or pipes and producing a variable 4-20mA output.

FEATURE

  • Completely submersible liquid level transmitter •Wide variety of sensors, e.g. extension tube or flexible cable, standard or high temperature
  • Measuring range up to 328ft (100m) •4-20mA output, 2-wire loop powered •Pressure transducer also available

APPLICATION

USE

  • Extension cable unit can measure in deep wells or reservoirs
  • Tank level measurement and control
  • PLC or DCS input for level control functions
  • Pressure measurement of gas or liquid (EC1500)

INDUSTRY

  • Water treatment and distribution
  • Chemical
  • Many others
